Midas M32R LIVE Mixer Digitale

Midas M32R Live EU Digital Mixing Console — Compact Touring Power with PRO-Series Preamps

The Midas M32R Live EU is a 19" rack-mountable digital mixing console engineered for live sound, broadcast, and studio recording where flagship preamp quality matters but rack space is at a premium. The same Midas PRO Series microphone preamp circuitry as the larger M32 is found in a compact 478 x 617 x 208 mm chassis weighing 18.1 kg. This makes it ideal for touring rigs, fixed installations, and broadcast trucks. No matter whether you come from an analog or digital background, the workflow stays intuitive because of motorized faders and a high-resolution colour display keeping every routing decision visible at a glance.

What Sets the M32R Live EU Apart in the Digital Mixer Category

Engineers will find this rack-format console stands out thanks to its combination of Midas PRO Series preamps, Klark Teknik SuperMAC AES50 networking, and a replaceable DN32-Live expansion card slot. Features such as a 40-bit floating-point signal path, 100-band real-time analyzer, and 100-scene internal show automation help dial in monitor mixes, recall setups between acts, and analyze room response—no external plugins required. Wireless remote control via a dedicated iOS app allows tablet mixing from anywhere in the venue.

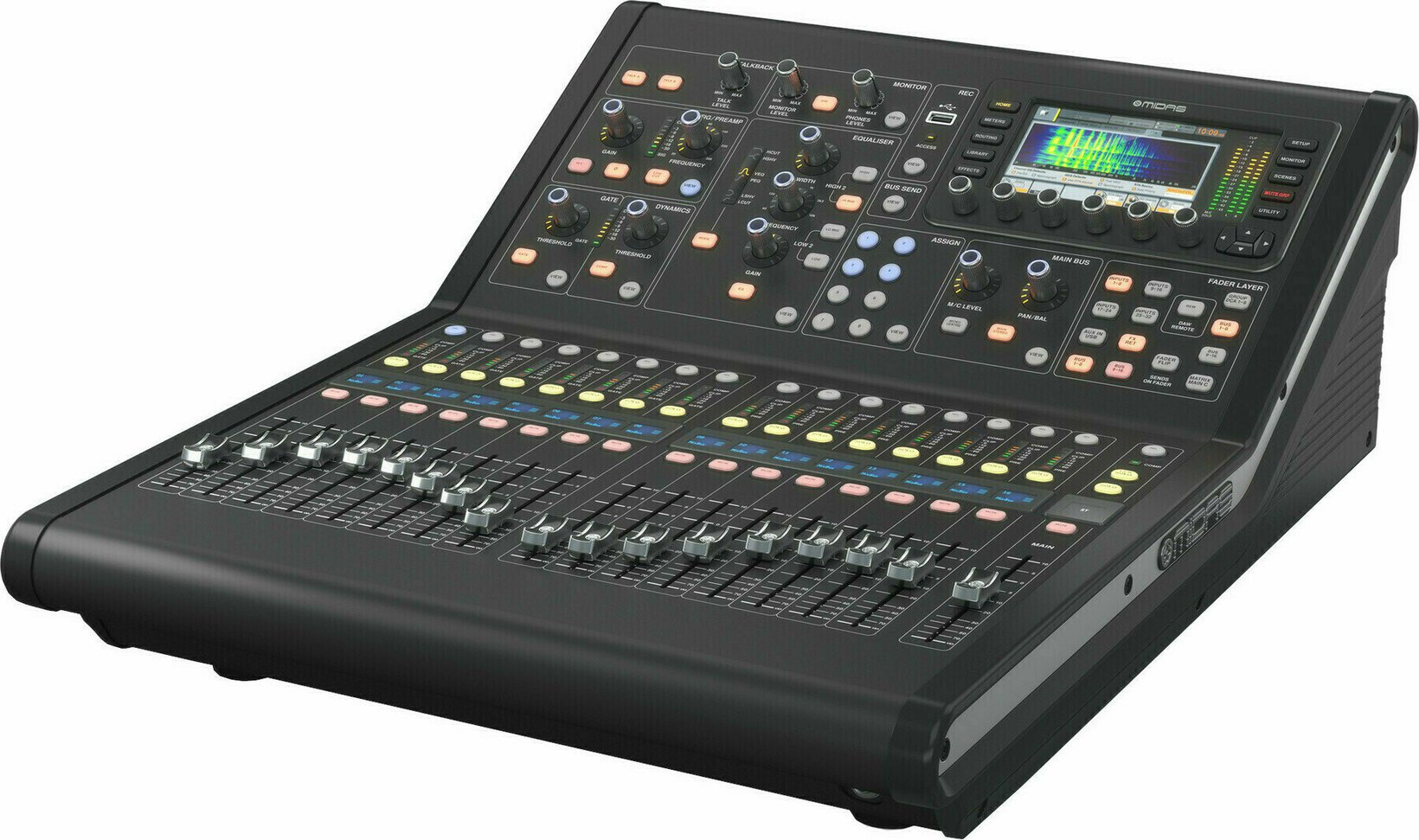

Microphone Inputs and Preamps — Capture Quality for Live and Studio

At the heart of this instrument is the preamp section: 16 Midas PRO Series microphone preamps define its sonic character. These preamps offer a sensitivity range of +10 dB to +60 dB, frequency response from 20 Hz to 20 kHz within ±1 dB, and switchable +48 V phantom power for condenser microphones and active DI boxes. Working together with the 40-bit signal flow, this front end ensures transient detail and headroom even through aggressive dynamics processing.

• Microphone Preamps: 16 Midas PRO Series (XLR) — flagship touring-grade preamp circuitry inherited from the larger M32
• Phantom Power: +48 V switchable — powers condenser mics and active direct boxes across all 16 inputs
• For artist and engineer communication, a talkback input (1 XLR with external mic support) is included as a dedicated channel.
• Auxiliary Inputs: 2 x RCA + 2 x 1/4" TRS — playback devices and stereo sources connect without adapter cables

Mix Architecture and Routing — Buses, DCAs, and Digital Networking

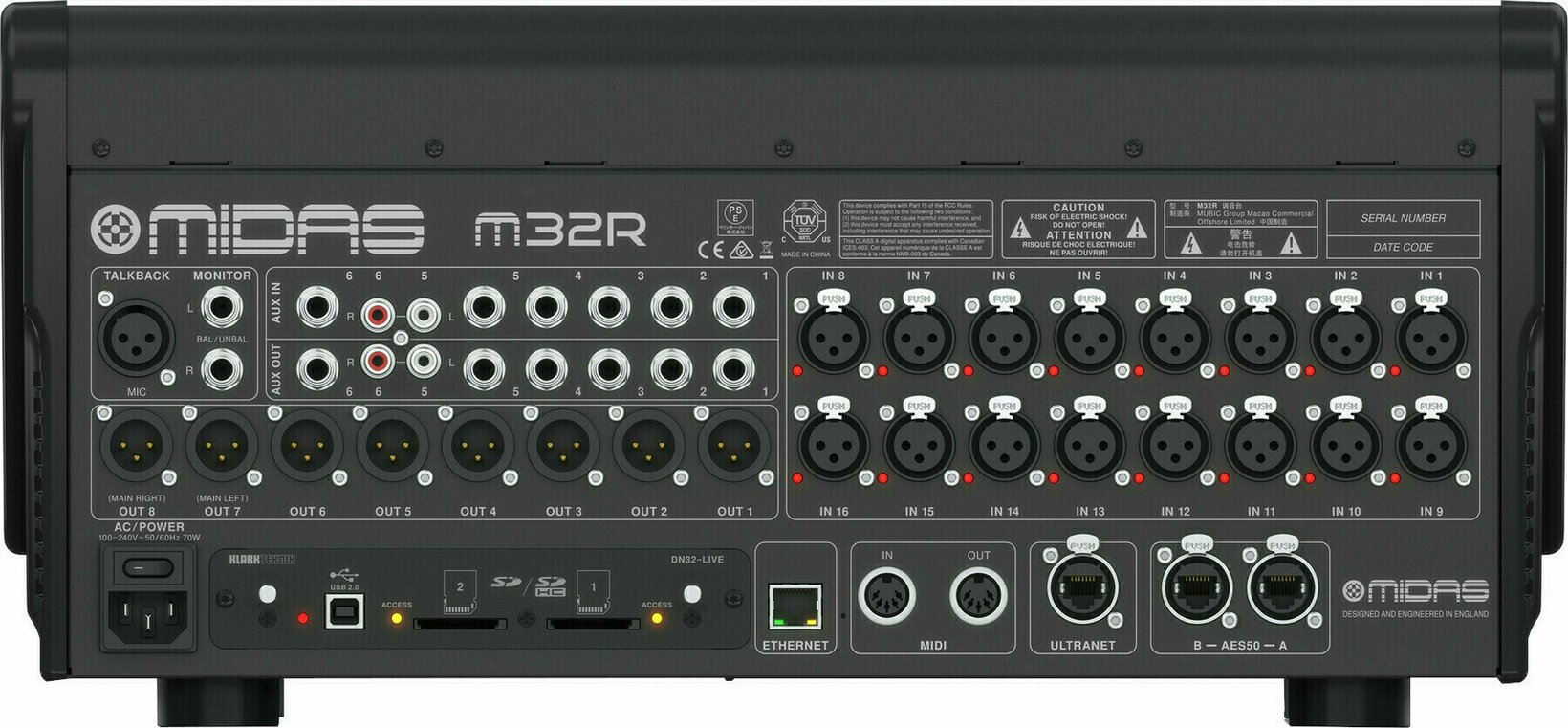

Routing flexibility is central to digital consoles, and here you get 25 time-aligned and phase-coherent mix buses, 8 DCA groups, and 6 mute groups for organizing monitor sends, FX returns, and subgroup stems. Two AES50 ports with Klark Teknik SuperMAC protocol deliver low-latency bidirectional audio to stage boxes like the DL16 or DL32, and a ULTRANET P-16 connector feeds personal monitor mixers directly. A 32x32 USB 2.0 audio interface streams full multitrack audio to and from any DAW for live recording and virtual soundcheck workflows.

• Mix Buses: 25 time-aligned and phase-coherent — generous headroom for monitor sends, FX, and subgroups
• Managing complex multi-act shows is straightforward using 8 DCA and 6 mute groups without losing fader access.
• Digital Networking: 2 x AES50 (Klark Teknik SuperMAC) + 1 x ULTRANET P-16 — expand to stage boxes and personal monitoring
• USB Audio I/O: 32 channels bidirectional via USB 2.0 — multitrack recording and playback straight into a DAW

Onboard Processing, Control Surface, and Connectivity

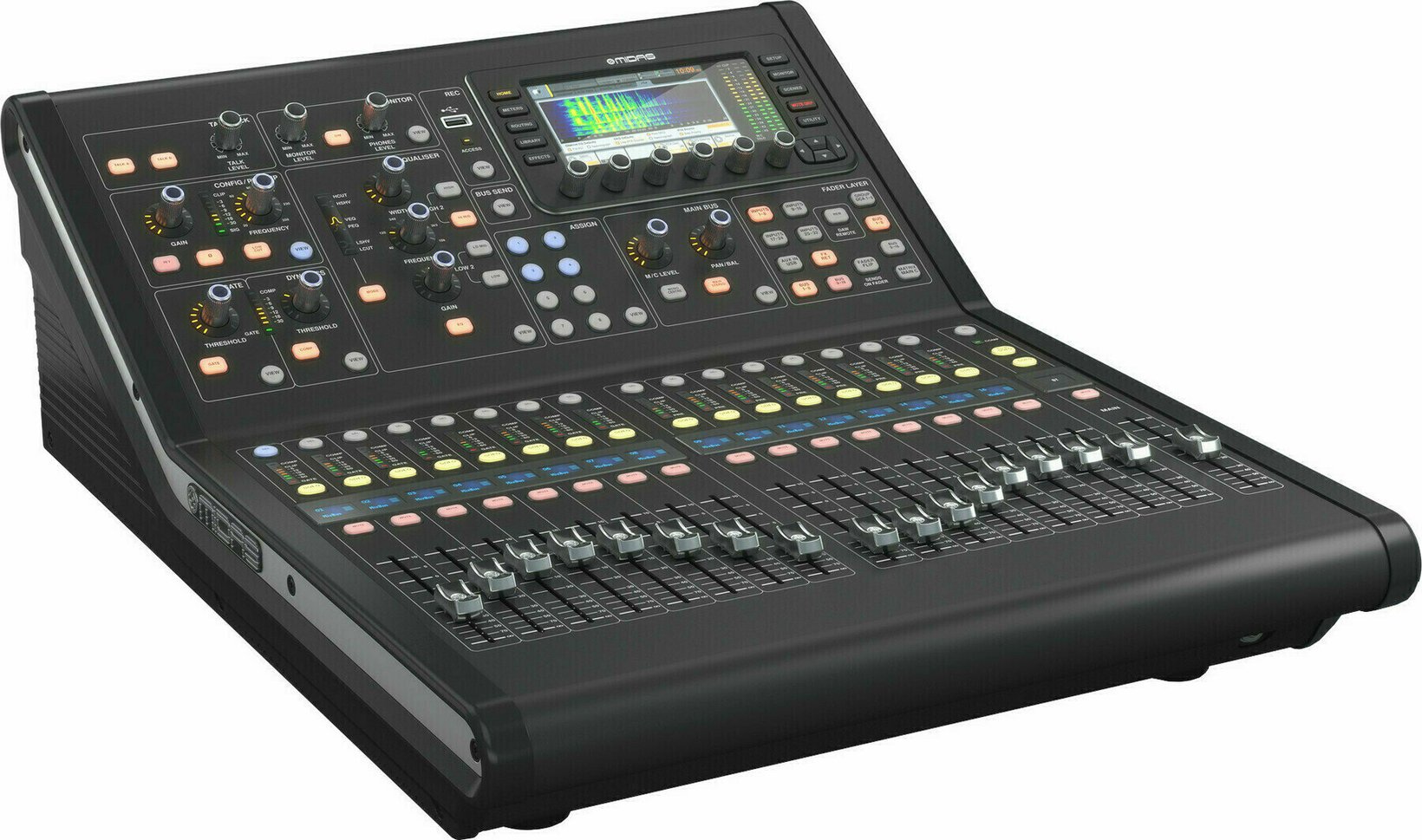

The control surface centers on 17 Midas PRO motorized faders (16 channel + 1 master) backed by a 7" TFT LCD main display at 800 x 480 resolution and a 5" colour screen for hands-on parameter editing. Eight True Stereo / sixteen Mono internal effect engines deliver onboard Chorus, Reverb, Flanger, and Delay without taxing the channel strip, and 100 internal Total Recall scenes plus 500 cues / 100 snippets automate show transitions. DAW remote control emulates Mackie Control and HUI protocols, and the package ships with manual, mounting plate, and power cable ready for rack installation.

• Motorized Faders: 17 Midas PRO (16 channel + 1 master) — automated fader moves and scene recall across the mix
• Internal Effects: Chorus, Reverb, Flanger, Delay — onboard processing with 8 True Stereo / 16 Mono engines
• View routing, metering, and editing clearly thanks to the 7" TFT LCD main display and 5" colour secondary.
• Power: Auto-ranging 100-240 VAC, 70 W — global touring compatibility without voltage switches

Who the M32R Live EU Is Built For

Live sound engineers, houses of worship, broadcast operators, and project studio owners who need flagship Midas PRO preamp quality in a rack-mountable footprint will find this instrument fits standard 19" racks and fly-away systems. Touring bands and rental companies benefit from AES50 stage box expansion, the 100-band RTA for room tuning, and the iOS wireless remote enabling a monitor engineer to walk the venue while adjusting mixes. Recording engineers gain a 32x32 USB audio interface to capture every channel for multitrack albums and virtual soundcheck rehearsals. Broadcast and podcast studios use the talkback mic input, 100-scene automation, and Mackie Control / HUI DAW remote to integrate the console directly into Pro Tools, Logic, Cubase, and Reaper workflows.

The Midas Heritage — From Live Sound to Today

Midas built its reputation on analog consoles mixing major tours and broadcasts worldwide. The PRO Series preamp design, Klark Teknik SuperMAC networking, and rugged motorized fader surface reflect decades of feedback from engineers demanding reliability in every environment. Features like the DN32-Live expansion card slot, AES50 stage box compatibility, and iOS wireless remote control keep the console relevant for hybrid live and recording workflows.
